AISI 316 Stainless Steel Rods With BA Surface, Dia 4mm to 800mm
Description:
- Product Item No:007Rod-Cosco Steel
- Name:AISI 316 stainless steel rod
- Standard:ASTM A276-06
- Material Grade:201, 202, 304, 304L316, 316L, 430, 440. etc
- Size Range:diameter; 3-400mm
φ 3mm-80mm (Cold-drawn)
φ 10mm~φ 120mm (Hot-rolled)
φ 50mm-400mm (Hot-forged) - Length:4m, 6m or as per customers' request
- Tolerance:+/-0. 15mm
- Finish:Black; Pickled; No. 4; 240#; 320#; 400#; or other polished finish
- Application:Ornamental , Decoration construction, upholstery, industry instruments etc
- Test:Squash test, Extended test, Water pressure test, Crystal rot test, Heat treatment, NDT
|
Chemical Composition of Material
|
Composition
Material | 201 | 202 | 304 | 316 | 430 |
| C | ≤ 0.15 | ≤ 0.15 | ≤ 0.08 | ≤ 0.08 | ≤ 0.12 |
| Si | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 |
| Mn | 5.5-7.5 | 7.5-10 | ≤ 2.00 | ≤ 2.00 | ≤ 1.00 |
| P | ≤ 0.06 | ≤ 0.06 | ≤ 0.045 | ≤ 0.045 | ≤ 0.040 |
| S | ≤ 0.03 | ≤ 0.03 | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 |
| Cr | 16-18 | 17-19 | 18-20 | 16-18 | 16-18 |
| Ni | 3.5-5.5 | 4-6 | 8-10.5 | 10-14 | |
| Mo | | | | 2.0-3.0 | |
|
Mechanical Property | Material Item | 201 | 202 | 304 | 316 |
| Tensile Strength | ≥ 535 | ≥ 520 | ≥ 520 | ≥ 520 |
| Yield Strength | ≥ 245 | ≥ 205 | ≥ 205 | ≥ 205 |
| Extension | ≥ 30% | ≥ 30% | ≥ 35% | ≥ 35% |
| Hardness (HV) | < 253 | < 253 | < 200 | < 200 |
Reference:
AISI /ASTM:
Austenitic: 201, 202, 301, 303, 304, 304L, 309S, 310S, 310H, 314, 316, 316TI, 316L, 316LN, 317, 317L, 321, 347, 347L, 347H, 904L
Duplex: 2205, 2304, 2507, 255, 253mA, 254MO, 654MO
Ferritic; 409, 409L, 430, 434, 444, , 446.
Martensitic: 410s, 410, 420.
Inconel: 600, 607, 617, 625, 630
ASTM A213 / A213M - 11a:Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes
ASTM A269 - 10:Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing for General Service
ASTM A312 / A312M - 12:Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes
ASTM A789 / A789M - 10a:Standard Specification for Seamless and Welded Ferritic/Austenitic Stainless Steel Tubing for General Service
ASTM A790 / A790M - 11:Standard Specification for Seamless and Welded Ferritic/Austenitic Stainless Steel Pipe
EN:
Austenitic: 1.4272, 1.4273, 1.4310, 1.4305, 1.4301, 1.4306, 1.4833, 1.4835, 1.4845, 1.4841, 1.4401, 1.4404, 1.4571, 1.4438, 1.4541, 1.4878, 1.4550, 1.4539.
Duplex: 1.4462, 1.4362, 1.4410, 1.4507
Ferritic: 1.4512, 1.400, 1.4016, 1.4113, 1.4526, 1.4521, 1.4530, 1.4749;
EN 10216-5 Welded Stainless Steel Tube
EN 10216-7 Seamless Stainless Steel Tube
Applications:
We,this type bars be widely used in kinds of industries:
petroleum, chemical industry, electric power, boiler, high temperature resistant, low temperature resistant, corrosion resistant seamless steel pipe used.Stainless steel bar can be made according to the customers requirements
|
|

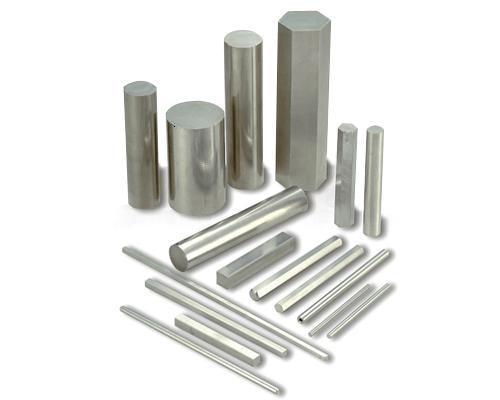

AISI 316 Stainless Steel Roud Rods With BA Surface, Dia 4mm to 800mm Images
|
